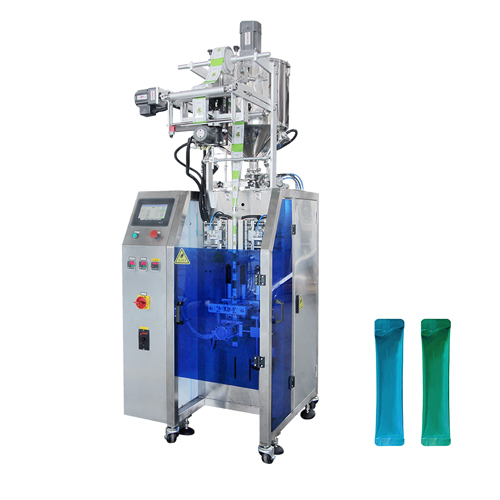

Main Function:
The granular product feeding, metering, filling, bag formation, sealing, and date stamping operation is completed automatically by the machine.
Application:
Machine is suitable for different kinds of granule product packing. Like Hardwares, Plastic parts, Electronic parts, Candies, Medical pills, Medicinal tea, ect.
Honey
Jam
Energy drink
Pigment
Sample Cosmetic
Liquid Gel
Optional Bag Type
Machine use roll film to make big bags of pillow bag, standup pouch, gusset bag with hole punching, quad seal bag, ect.
metering system:
Different metering pumps are available to accommodate various types of liquid product packaging. Examples include cylinder pumps, rotor pumps, and mechanical pumps.
Storage hoper
Mixer in hoper
Metering system
Main Machine Process
Film Input
Pneumatic sucking device ensures that prefabricated pouches are pulled up automatically.
Vertical Sealing
A powerful bag holding and sucking system that allows the preamde pouch to be opened in a steady condition.
Bag Cutting
Continuous functioning station for bag transfer to be filled with items.Speed can range from 30 to 40 bags per minute.
Transmission Structure
Sophisticated sealing mechanism for prepared pouches ensures a solid sealing result.
Main Machine features:
1.Metering pump designed specifically for filling thick liquids.
2.With a branded HMI and PLC control system for simple parameter configuration.
3.A separate PID temperature controller is suited for a variety of packaging materials.
4.A custom punching mould is offered for odd bag shape designs.
5.Basic construction is simple, making it easy to use and maintain.
6.Fully automated filling, measuring, bag creation, and sealing.
7.Compact and portable for limited space.
8.The machine can begin operation without installation.
Different models is available for choice to meet differnt packing sizes.
| Model | AT-200L |
| Film width | Max.140mm |
| Bag width | 25~60mm |
| Bag length | 30~160mm |
| Bag type | Customized bag shape |
| Measuring range | 1~30ml |
| Packing speed | 20~40 bags/min |
| Powder supply | 220V 50/60Hz， 2.2KW |
| Weight | 350KG |
| Size | 850×1100×1900mm |
*** Machine parameters can be customized according the packing requirements.
