Main Function:
For granule items, the machine completes the feeding, weighing, bag opening, filling, sealing, and date stamping processes automatically.
Application:
Machine is suitable for different kinds of granule product packing. Like dry fruits, nuts, beans, snack food, candy, biscuits, seeds, pet food, chemical particles, ect.
Functional beverages
Souce & Paste
Sample Cosmetics
Optional Bag Type
Machine is suitable for different kinds of premade pouches of 4 side seal bag, doypack bag with zipper, standup bag, M shape gusset bag, ect.
Irregular shape pouch
doypack bag with zipper
4 sides seal bag
Liquid pump metering system:
Different metering pumps are avialable to meet various kinds of liquid product packing in a wide range. Such as cylinder pump, rotor pump, mechanical pump, ect.
Storage hopper
Customized metering pump
Main Machine Process

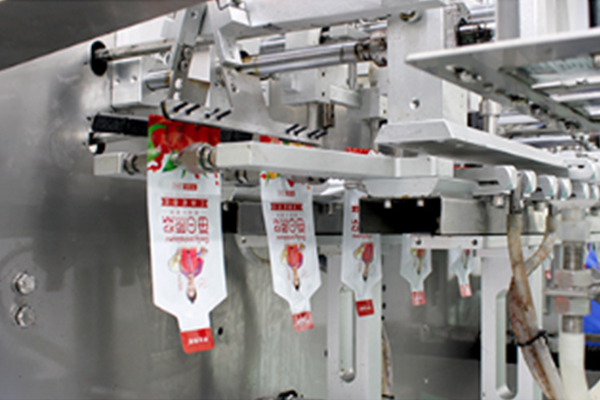

Double Bag Pickup Station
Pneumatic sucking system ensure premade pouch being picked up automatically.

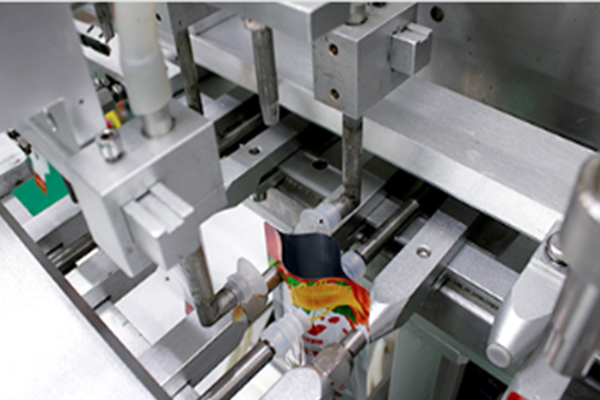

Double Bag Opening
A Strong bag holding and sucking system for premade pouch being opened in stable condition.

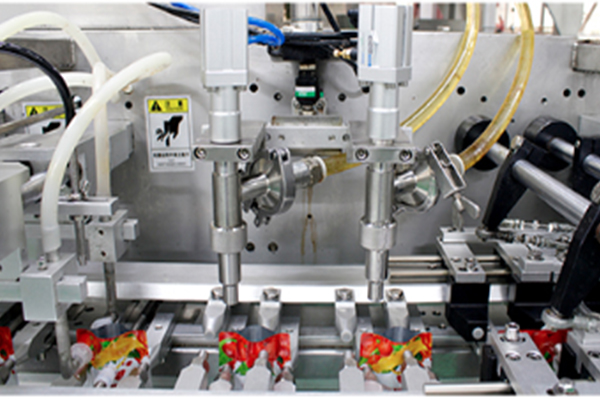

Double Filling System
Continious working station of bags transfering to be fill with products.speed can reach 60~80 bags per min.

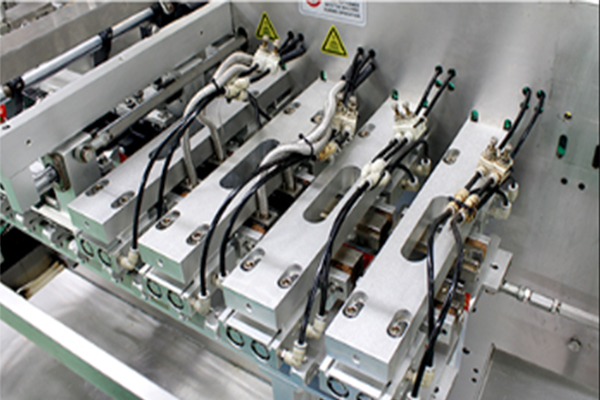

Double Sealing & Punching
Sophisticated sealing structure for premade bag in reliable sealing result.And the customized punching mould for irregular bag shapping.

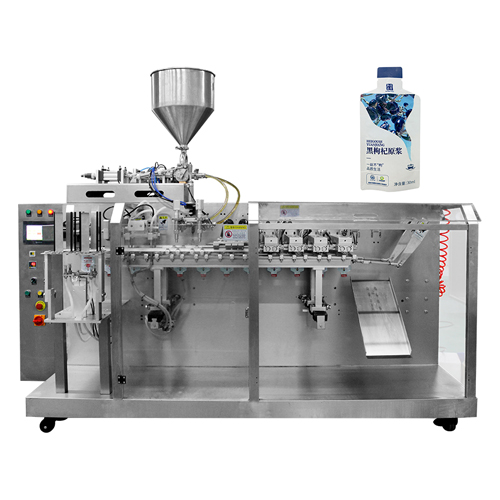

Main machine features:
1. Different machine models available to meet a wide range premade bag size.
2. Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 4 side seal bag, stand up bag and irregular bag, ect.
3. Multiple working station to meet full automatic process of bag pickup, date printing, bag opening, filling, bag arranging, sealing and output.
4. With upgrade PLC control system, machine is easy for operation on touch screen of parameter setting.
5. Machine machine can equipment with different metering system like multihead weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade pouch.
Different models is available for choice to meet differnt packing sizes.
| Model | AT-160HPW4 | AT-210HPW4 | AT-260HPW4 | AT-320HPW4 |
| Bag width | 80×160mm | 90×210mm | 150×260mm | 200×320mm |
| Bag length | 100×190mm | 110×330m | 150×400mm | 200×500mm |
| Packing speed | 20-60bags/mi | 20-60bags/min | 10-60bags/min | 10-50bags/min |
| Measuring range | 5~300ml | 50~1000ml | 200~2000ml | 500~3000ml |
| Power | 380V 50/60H, 3KW | 380V 50/60H, 4KW | 380V 50/60H, 4.5KW | 380V 50/60H, 5KW |
| Air consumption | 0.5m³ | 0.5m³ | 0.7m³ | 0.7m³ |
*** Machine parameters can be customized according the packing requirements.
