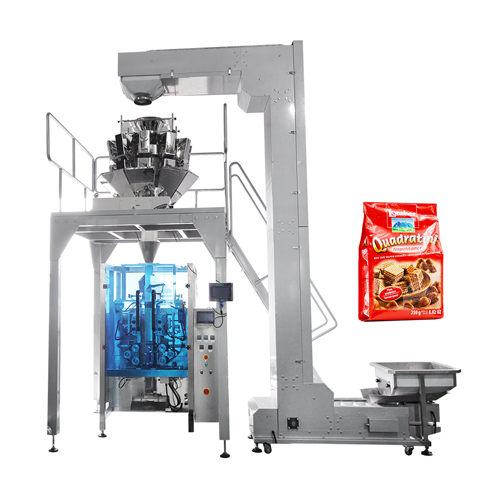

Main Function:
For granule items, the machine completes the feeding, weighing, bag opening, filling, sealing, and date stamping processes automatically.
Application:
Machine is suitable for different kinds of granule product packing. Like dry fruits, nuts, beans, snack food, candy, biscuits, seeds, pet food, chemical particles, ect.
Dry Fruit & Nuts
Candy & Biscuits
Snack Food
Mixed Salad
Frozen food
Pet Food
Optional Bag Type
Machine use roll film to make big bags of pillow bag, standup pouch, gusset bag with hole punching, quad seal bag, ect.
4 edge sealing quad seal bag
5 edge sealing quad seal bag
Weigher metering system:
Different kinds of weighers are available for choice to meet a variety of products packing in a wide range of weight.
4 head linear weigher
10 head weigher
14 head weigher with dimpled steel
Main Machine Process
Film Input
Multi-Union roll film structure enable film running in stable and unhindered condition.
Servo Drive
Servo motro and servo drive for double belts running system make perfect bag shape forming.
Bag Former
Different bag sizes can be easily adjusted by chaing the bag former size within limits.
Cutting Jaw
Sophisticated cutting structure with independent temperature system for bag cutting and sealing Gusset device are optional for gusset bag.
Main machine features:
1. Multihead combination weigher to improve metering speed and accuracy.
2. 7inch touch screen, easy for operation and multiple language for choice.
3. Imported PLC system, machine with memory storage function and easy for parameter setting.
4. Separate PID temperature controller, suitable for various packing materials.
5. Multi-union roll film pulling system make film running more smooth.
6. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
7. With branded components to ensure machine stable performance.
8. Machine in full automatic processing of feeding, metering, filling, bag forming, sealing and date printing.
Different models is available for choice to meet differnt packing sizes.
| Model | AT-520TW10 | AT-720TW10 |
| Measuring range | Max.1000g | Max.3000g |
| Bag front width | 75~130mm | 90~160mm |
| Bag side width | 40~80mm | 50~100mm |
| Bag edge seal width | 5~10mm | 5~10mm |
| Bag length | 100~380mm | 150~480mm |
| Packing speed | 10-40 bags/min | 10-40 bags/min |
| Max. film width | 520mm | 680mm |
| Voltage | 220VAC/50/HZ | 220VAC/50/HZ |
| Power | 5.5KW | 7.5KW |
*** Machine parameters can be customized according the packing requirements.
