Main Function:
The machine automatically completes the tea product process of feeding, measuring, filling, filter tea bag formation, sealing with string, and tag attachment.
Application:
Machine is suited for a variety of tea products. Like granule tea, loose tea leaves, herbal tea, healthy tea, floral tea, and so on.
Flower tea
Loose tea
Herbal tea
Healthy tea
Medicinal tea
Granule tea
Optional Bag Type
The machine uses filter paper rolls to manufacture three-sided seal filter bags, or the filter bag can be made with string and a tag.
3 side seal filter bag
Filter bag with string & tag
Metering System:
There are many metering systems available to satisfy varied tea product filling requirements in customised sizes. Examples include volume cups, rotary weighers, and linear scales.
Volumetric cups
Rotary Weigher
Linear scale
Main Machine Process

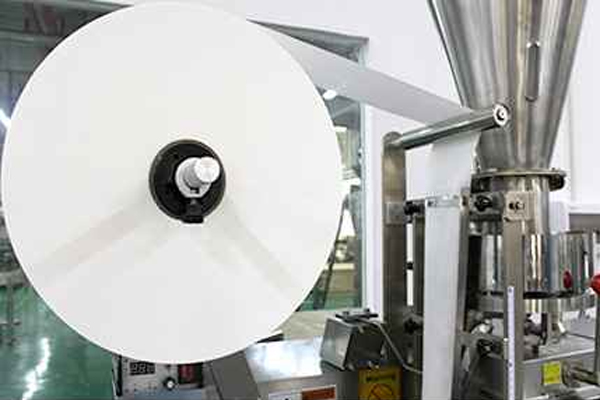

Inner filter film feeding
The simple roll film structure allows film to flow in a steady and unimpeded condition.

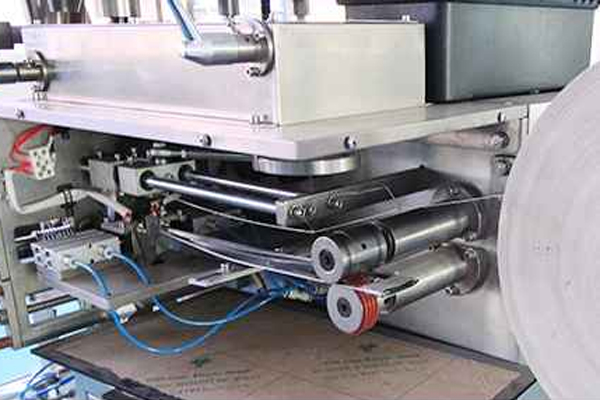

String and Labling
The pneumatic drive system creates an automatic structure for attaching string and labels to bags.

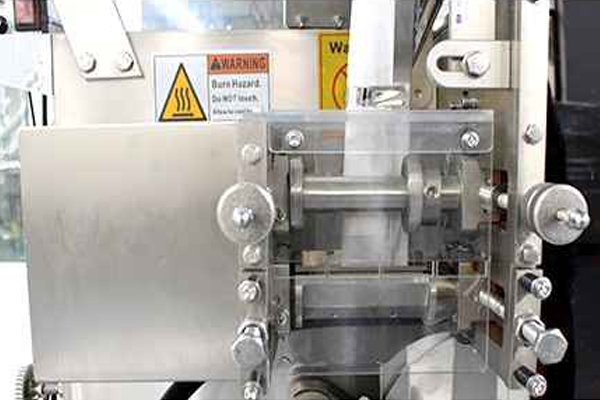

Bag forming and sealing
Sophisticated rotary sealing structure with separate temperature system for bag sealing and cutting in continuous operation.

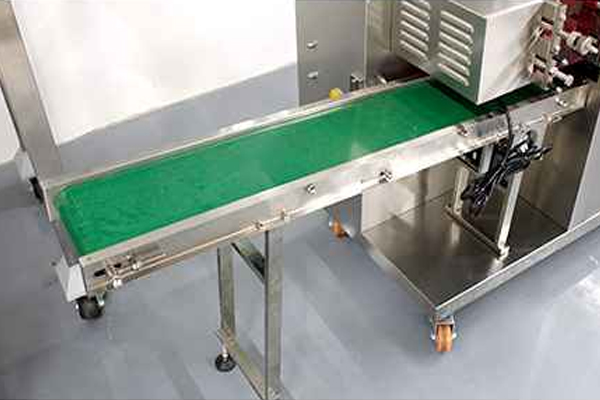

Output Convyeor
A conveyor for transpotating finished bags emerges automatically for final collecting.
Main machine features:
1.A volume cup, auger filler, or weigher metering system can be customised for various tea products.
2.With HMI and a customised PLC system for simple parameter configuration.
3.Basic construction is simple, making it easy to use and maintain.
4.The machine can automatically complete the entire process of producing a filter bag with string and tag, metering, filling, sealing, and cutting.
5.Compact and moveable for limited space.
Customisation design is offered to accommodate various packaging sizes.
| Model | AT-T180VD |
| Metering way | Volume cp set or auger filler or rotary weigher |
| Measuring range | 3~15ml |
| Bag size | (L)50~80mm；(W)45~80mm |
| Tag size | (L)18~23mm；(W)28mm |
| Packing material | Filter paper, String, Tag |
| Packing speed | 20~40 bags/min |
| Powder supply | 220V 50/60Hz， 1.6KW |
| Weight | 350KG |
| Size | 900×750×1650mm |
*** Machine parameters can be customised based on packing requirements.
