Main Function:
For granule items, the machine completes the feeding, weighing, bag opening, filling, sealing, and date stamping processes automatically.
Application:
Machine is suitable for different kinds of granule product packing. Like dry fruits, nuts, beans, snack food, candy, biscuits, seeds, pet food, chemical particles, ect.
Sauce & Paste
Sticky jam
salad sauce
food stuffing
curry paste
wasabi
Optional Bag Type
Machine use roll film to make big bags of pillow bag, standup pouch, gusset bag with hole punching, quad seal bag, ect.
Pillow bag
metering system:
Different metering pumps are avialable to meet various kinds of liquid product packing in a wide range. Such as cylinder pump, rotor pump, mechanical pump, ect.

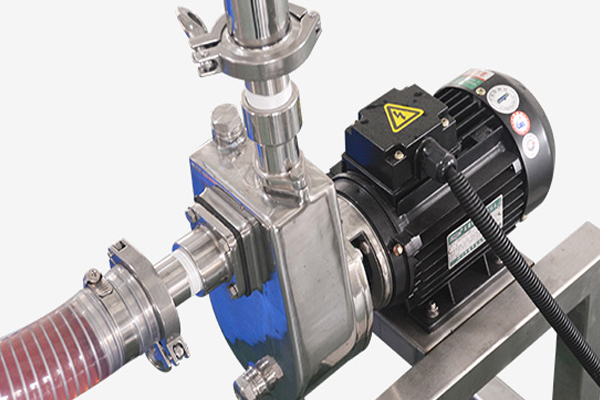

Customized metering pump
Main Machine Process

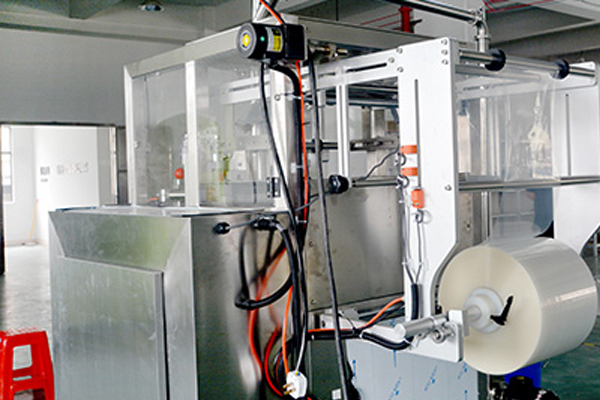

Film Input
Multi-Union roll film structure enable film running in stable and unhindered condition.

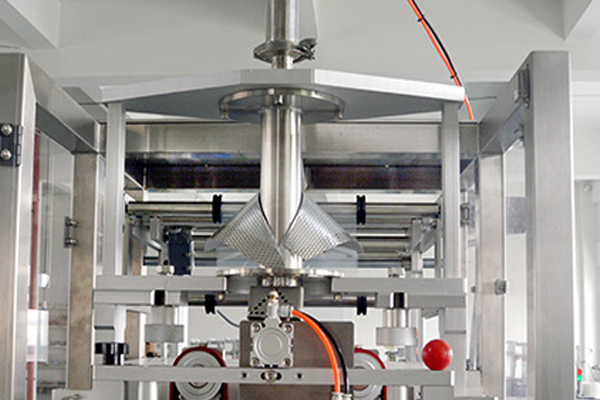

Bag Former
Different bag sizes can be easily adjusted by chaing the bag former size within limits.

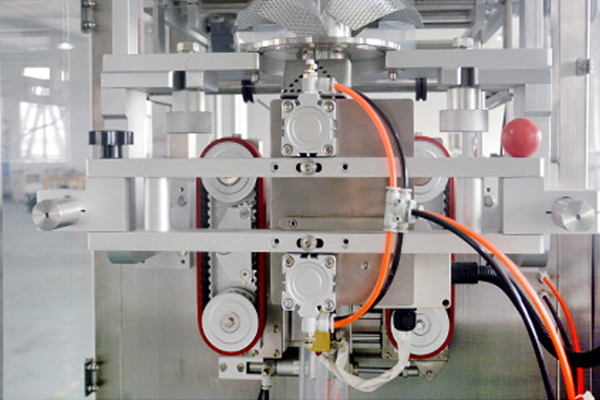

Vertical Sealing
with servo motro and servo drive for double belts running system make perfect bag shape forming and vertical sealing.

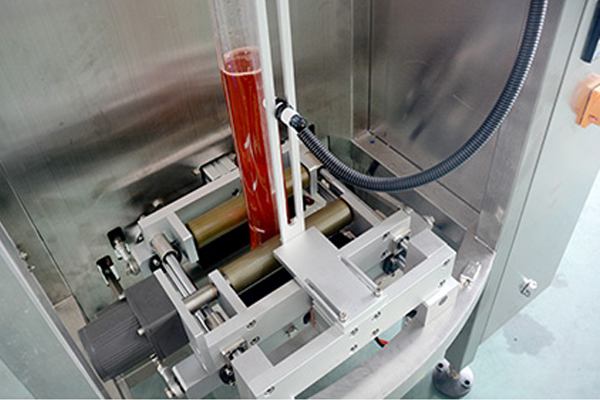

Horizontal sealing cutting
Sophisticated horizontal cutter with rollers for bag sealing and cutting in good conditional without leekage.
Main machine features:
1. DIfferent kinds of pump metering system is available for choice per liquid product.
2. 7inch touch screen, easy for operation and multiple language for choice.
3. Imported PLC system, machine with memory storage function and easy for parameter setting.
4. Separate PID temperature controller, suitable for various packing materials.
5. Multi-union roll film pulling system make film running more smooth.
6. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
7. With branded components to ensure machine stable performance.
8. Machine in full automatic processing of feeding, metering, filling, bag forming, sealing and date printing.
Different models is available for choice to meet differnt packing sizes.
| Model | AT-420L | AT-520L | AT-620L | AT-720L |
| Film width | 150~420mm | 180~520mm | 220~620mm | 260~720mm |
| Bag width | 65~200mm | 80~250mm | 100~300mm | 120~350mm |
| Bag length | 65~300mm | 60~350mm | 60~400mm | 60~450mm |
| Measuring range | Max.1200ml | Max.2000ml | Max.3000ml | Max.5000ml |
| Packing speed | 5~50 bags/min | 5~45 bags/min | 5~40 bags/min | 5~30 bags/min |
| Power supply | 220V 50/60Hz, 3KW | 220V 50/60Hz, 4KW | 220V 50/60Hz, 5KW | 220V 50/60Hz, 5KW |
| Air consumption | 0.5m³ | 0.5m³ | 0.6m³ | 0.7m³ |
*** Machine parameters can be customized according the packing requirements.
- Application
-
Application:
Machine is suitable for different kinds of granule product packing. Like dry fruits, nuts, beans, snack food, candy, biscuits, seeds, pet food, chemical particles, ect.
Sauce & Paste
Sticky jam
salad sauce
food stuffing
curry paste
wasabi
Optional Bag Type
Machine use roll film to make big bags of pillow bag, standup pouch, gusset bag with hole punching, quad seal bag, ect.
Pillow bag
- Description
-
metering system:
Different metering pumps are avialable to meet various kinds of liquid product packing in a wide range. Such as cylinder pump, rotor pump, mechanical pump, ect.
Customized metering pump
Main Machine Process
Film Input
Multi-Union roll film structure enable film running in stable and unhindered condition.
Bag Former
Different bag sizes can be easily adjusted by chaing the bag former size within limits.
Vertical Sealing
with servo motro and servo drive for double belts running system make perfect bag shape forming and vertical sealing.
Horizontal sealing cutting
Sophisticated horizontal cutter with rollers for bag sealing and cutting in good conditional without leekage.
Main machine features:
1. DIfferent kinds of pump metering system is available for choice per liquid product.
2. 7inch touch screen, easy for operation and multiple language for choice.
3. Imported PLC system, machine with memory storage function and easy for parameter setting.
4. Separate PID temperature controller, suitable for various packing materials.
5. Multi-union roll film pulling system make film running more smooth.
6. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
7. With branded components to ensure machine stable performance.
8. Machine in full automatic processing of feeding, metering, filling, bag forming, sealing and date printing.
- Parameter
-
Different models is available for choice to meet differnt packing sizes.
Model AT-420L AT-520L AT-620L AT-720L Film width 150~420mm 180~520mm 220~620mm 260~720mm Bag width 65~200mm 80~250mm 100~300mm 120~350mm Bag length 65~300mm 60~350mm 60~400mm 60~450mm Measuring range Max.1200ml Max.2000ml Max.3000ml Max.5000ml Packing speed 5~50 bags/min 5~45 bags/min 5~40 bags/min 5~30 bags/min Power supply 220V 50/60Hz, 3KW 220V 50/60Hz, 4KW 220V 50/60Hz, 5KW 220V 50/60Hz, 5KW Air consumption 0.5m³ 0.5m³ 0.6m³ 0.7m³ *** Machine parameters can be customized according the packing requirements.
