Main Function:

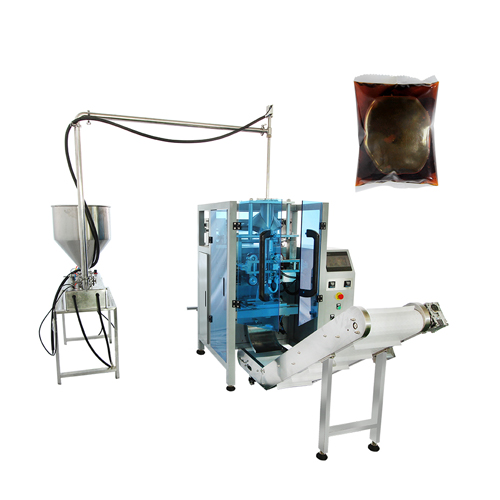

The liquid product feeding, metering, filling, bag formation, sealing, and date stamping operation is completed automatically by the machine.
Application:
Machine is suitable for different kinds of granule product packing. Like dry fruits, nuts, beans, snack food, candy, biscuits, seeds, pet food, chemical particles, ect.
Liquid detergent
Chemical liquid
sauce & paste
Sticky jam
Medical liquid
Oil
Optional Bag Type
Machine use roll film to make big bags of pillow bag, standup pouch, gusset bag with hole punching, quad seal bag, ect.
Pillow bag
metering system:
Different metering pumps are avialable to meet various kinds of liquid product packing in a wide range. Such as cylinder pump, rotor pump, mechanical pump, ect.
Main Machine Process
Film Input
The multi-union roll film structure allows the film to flow smoothly and without interruption.
Bag Former
Servo motro and servo drive for double belt running system ensure precise bag shape formation.
Vertical Sealing
Different bag sizes can be simply modified by chaining the bag former size within certain parameters.
Horizontal sealing cutting
A sophisticated cutting structure with an independent temperature system for bag cutting and sealing. Gusset devices are optional for gusset bags.
Main machine features:
1. Different types of pump metering systems are available depending on the liquid product.
2. 7-inch touch screen, easy to use, and available in different languages.
3. Imported PLC system; machine with memory storage function and simple parameter setting.
4. A separate PID temperature controller designed for different packing materials.
5. The multi-union roll film pulling system makes film run more smoothly.
6. Use a twin servo film-dragging structure to provide steady bag formation for the perfect bag shape.
7. With branded components to assure the machine’s consistent performance.
8. The machine is fully automatic in terms of feeding, measuring, filling, bag formation, sealing, and date printing.
Different models is available for choice to meet differnt packing sizes.
| Model | AT-420L | AT-520L | AT-620L | AT-720L |
| Film width | 150~420mm | 180~520mm | 220~620mm | 260~720mm |
| Bag width | 65~200mm | 80~250mm | 100~300mm | 120~350mm |
| Bag length | 65~300mm | 60~350mm | 60~400mm | 60~450mm |
| Measuring range | Max.1200ml | Max.2000ml | Max.3000ml | Max.5000ml |
| Packing speed | 5~50 bags/min | 5~45 bags/min | 5~40 bags/min | 5~30 bags/min |
| Power supply | 220V 50/60Hz, 3KW | 220V 50/60Hz, 4KW | 220V 50/60Hz, 5KW | 220V 50/60Hz, 5KW |
| Air consumption | 0.5m³ | 0.5m³ | 0.6m³ | 0.7m³ |
*** Machine parameters can be customized according the packing requirements.
