Main Function:
The machine automatically completes the tea product process of feeding, measuring, filling, filter tea bag formation, sealing with string, and tag attachment.
Application:
Machine is suited for a variety of tea products. Like granule tea, loose tea leaves, herbal tea, healthy tea, floral tea, and so on.
Flower tea
Loose tea
Herbal tea
Healthy tea
Medicinal tea
Granule tea
Optional Bag Type
To manufacture a pyramid tea bag or flat bag, use a machine with nylon or biodegradable PLA corn fibre rolls.
Pyramid tea bag
Flat tea bag
Metering System:
There are many metering systems available to satisfy varied tea product filling requirements in customised sizes. Examples include volume cups, rotary weighers, and linear scales.
Volumetric cups
Rotary Weigher
Linear scale
Main Machine Process

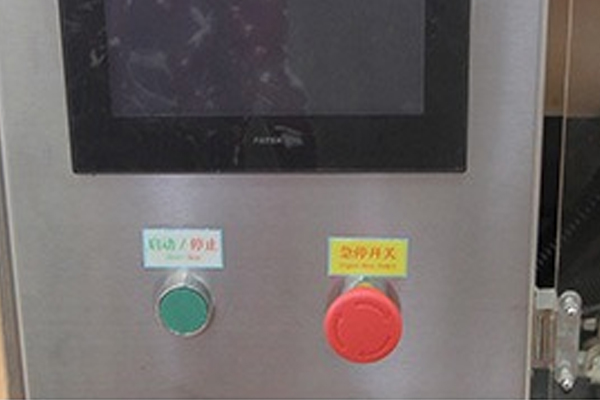

7 Inch HMI
The 7-inch HMI features a touch screen for convenient operation and parameter settings, as well as clear machine performance display.

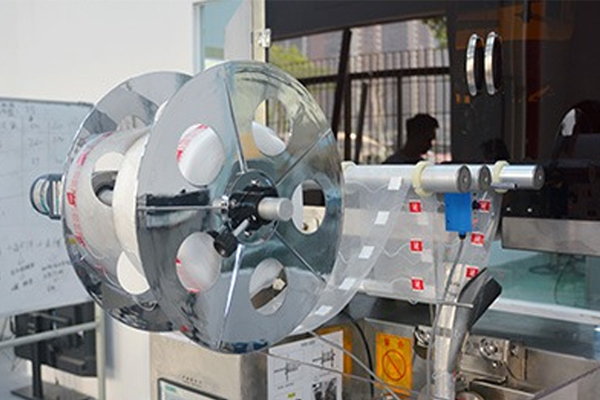

Film Input
The step motor for the film running mechanism ensures that the film moves smoothly during bag manufacturing and sealing.

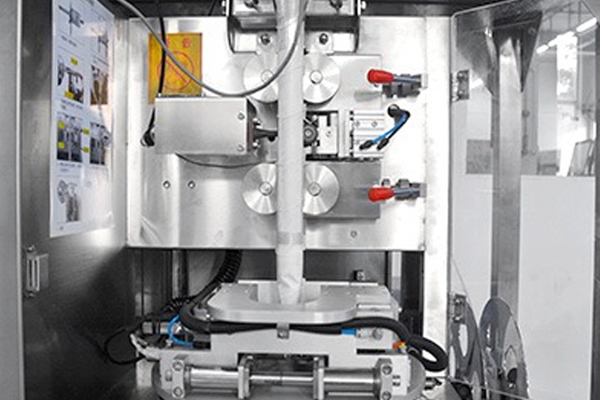

Vertical Seal
Two sets of rotary wheels for bag shaping and sealing keep the triangle bag in good shape.

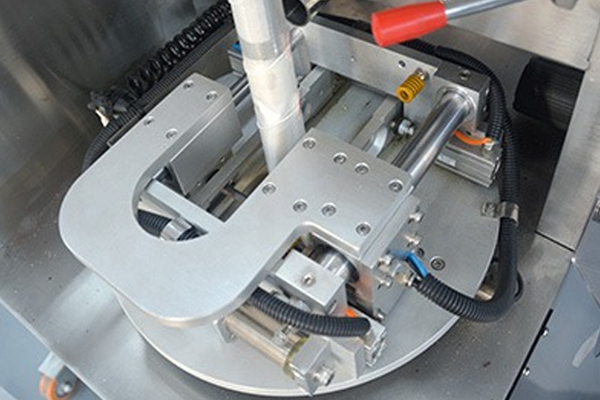

Cutting Jaw
Advanced cutting structure with ultrasonic sealing mechanism for bag sealing and cutting.
Main machine features:
1.A volume cup or rotary weigher metering equipment designed specifically for different tea products.
2.With HMI and a customised PLC system for simple parameter configuration.
3.Use an ultrasonic sealing device for superior flat or triangle bag shaping.
4.Basic construction is simple, making it easy to use and maintain.
5.The feeding, weighing, filling, bag forming, sealing, and cutting processes are all completed automatically by the machine.
Customisation design is offered to accommodate various packaging sizes.
| Model | AT-P180 |
| Packing speed | 15~30 bags/min |
| Metering way | Volume cup or rotary weigher |
| Measuring range | 1~7 g/bag |
| Roll film width | 120/140/160mm |
| FIlm material | Nylon, non-woven, PLA corn material, ect. |
| Film roll inner diameter | Φ76mm |
| Film roll outer diameter | ≤Φ400mm |
| Seal method | Ultrasonic sealing system |
| Powder supply | 220V 50/60Hz, 3KW |
| Air pressure | ≥0.6Mpa |
| Weight | 500KG |
| Size | 1320×1450×2200mm |
*** Machine parameters can be customised based on packing requirements.
